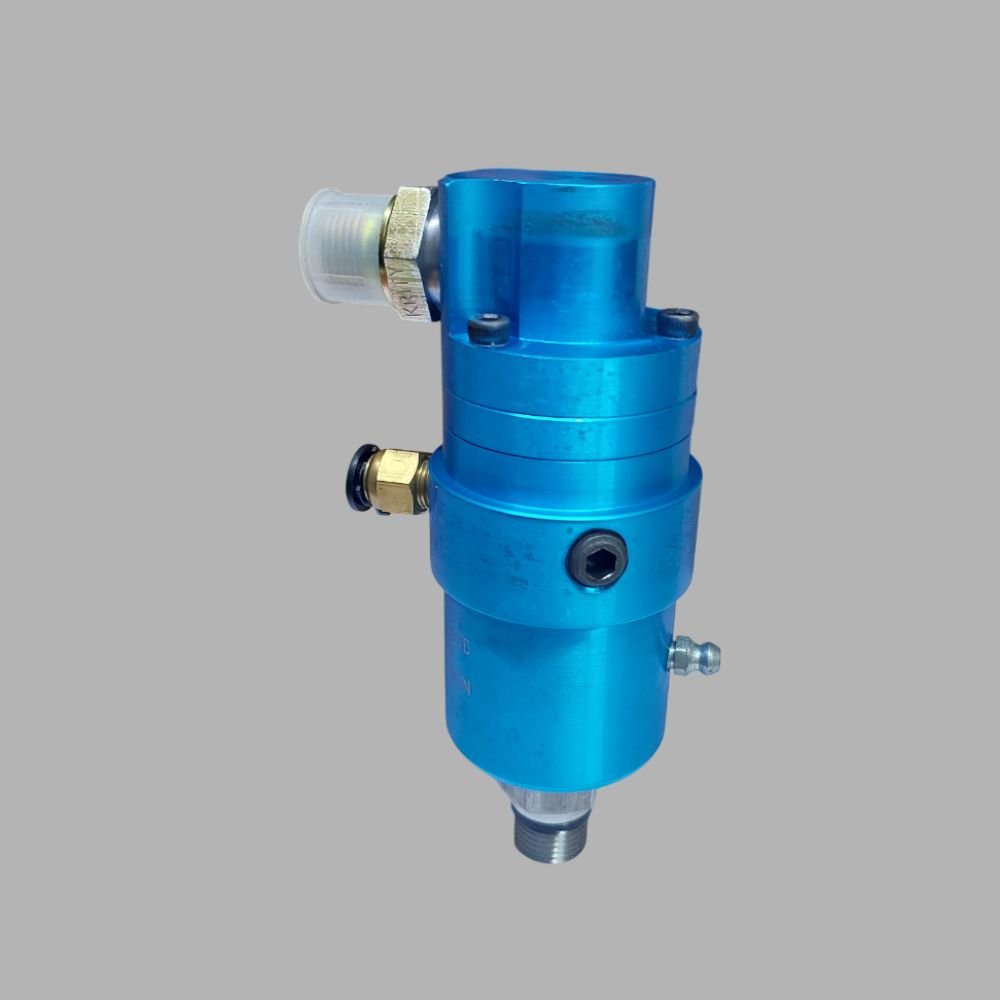

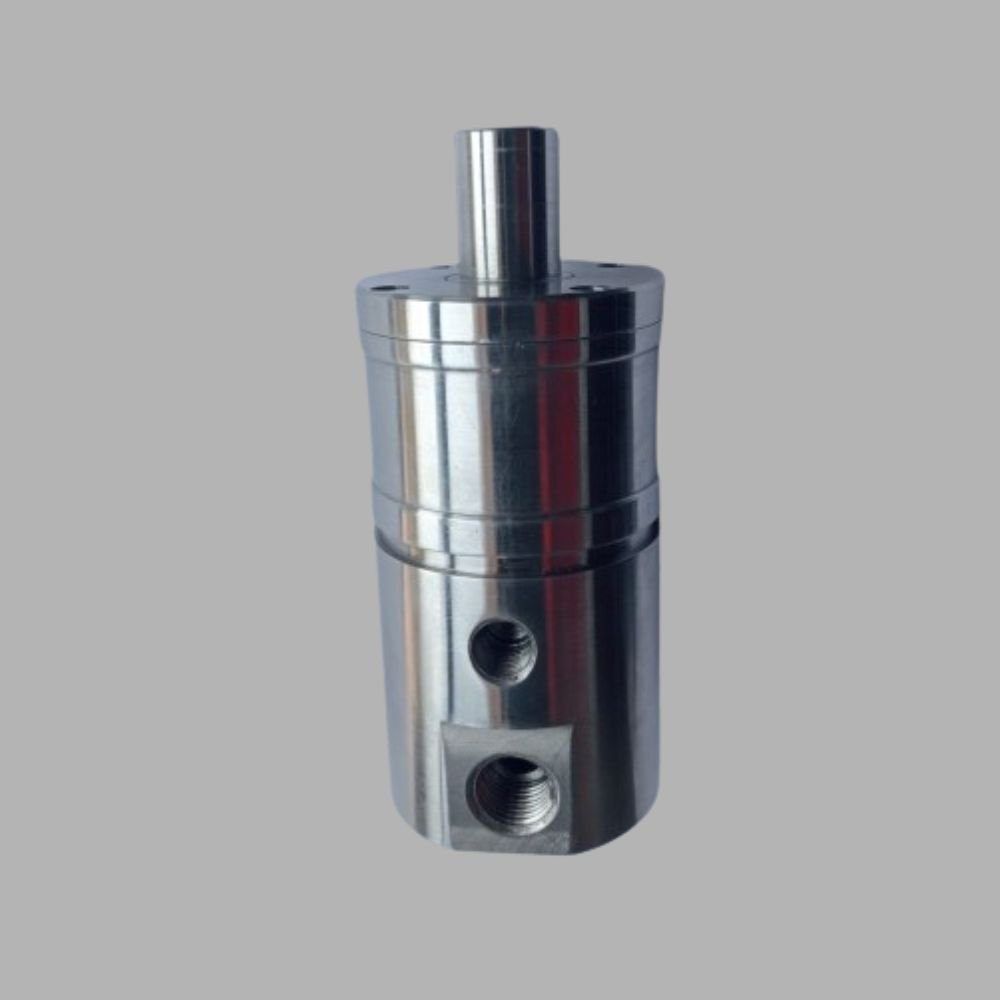

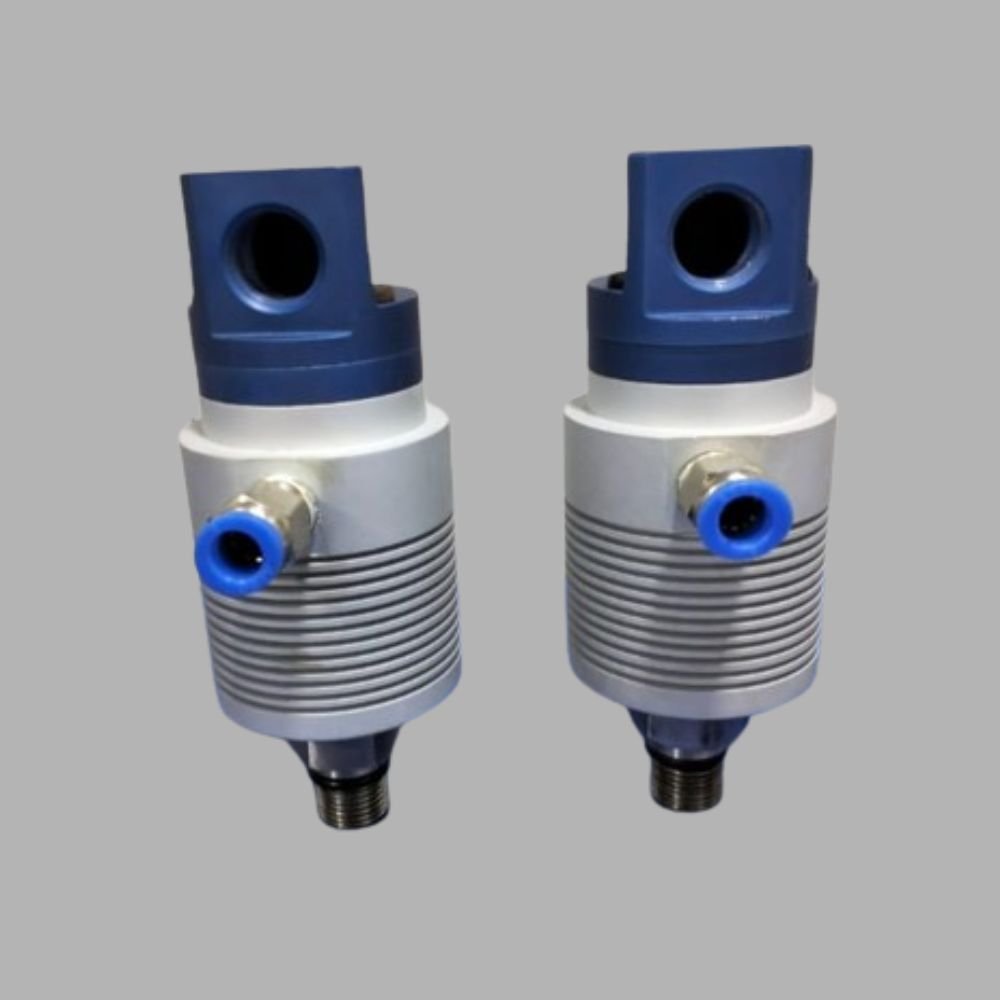

The Coolant & Hydraulic Rotary Union / Joint is a high-precision mechanical device designed to transfer coolant or hydraulic fluid from a stationary supply line into rotating machine components. It is primarily used for effective cooling of tools and spindles as well as for hydraulic fluid power transmission in high-speed machinery.
These rotary unions are specially engineered for high pressure and high RPM applications, ensuring reliable performance, leak-free operation, and extended service life. Commonly used in CNC, VMC, and drilling machines, they help improve machining accuracy, enhance tool life, and maintain consistent cooling during continuous operations. Each unit can be customized to meet specific machine and application requirements.
Designed for coolant and hydraulic fluid transfer
Suitable for high-pressure and high-speed applications
Ensures efficient spindle and tool cooling
Smooth rotation with stable sealing performance
Robust construction for long service life
Customizable design as per client application
| Parameter | Specification |
|---|---|
| Product Type | Coolant & Hydraulic Rotary Union / Joint |

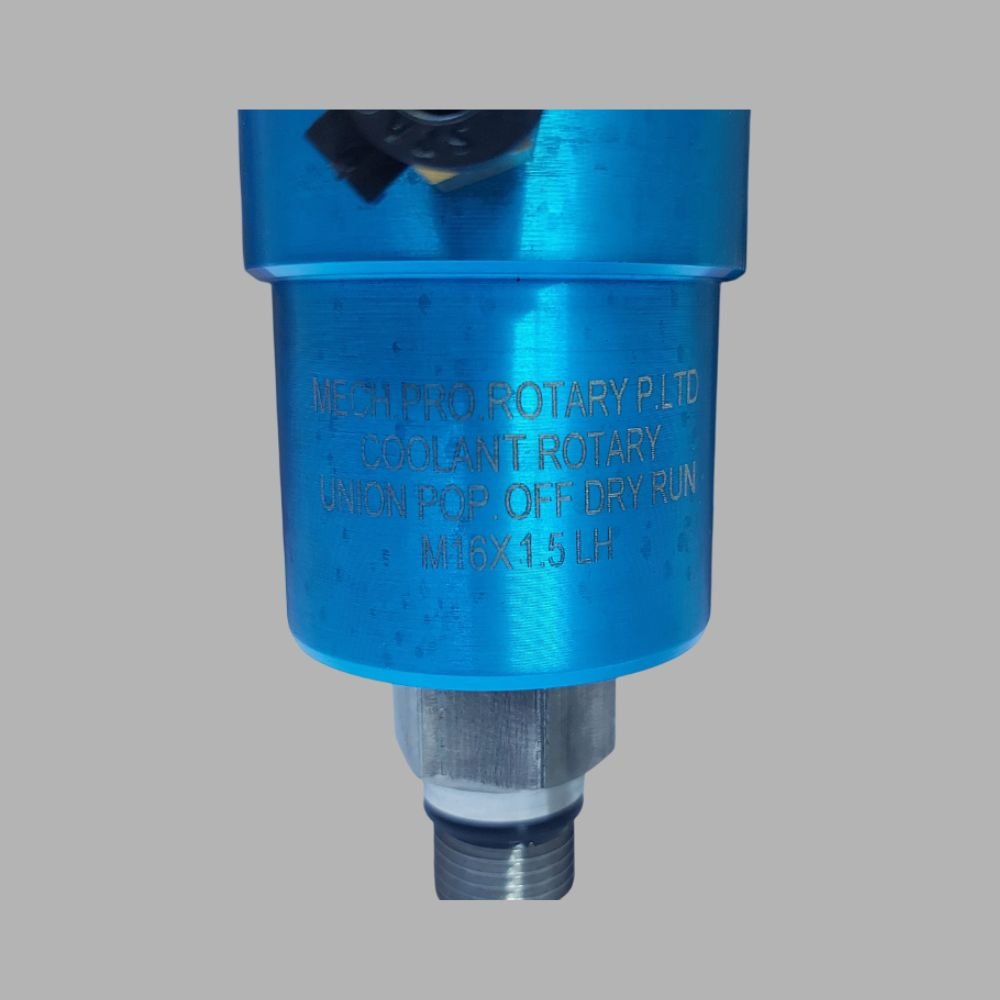

| Size / Thread Type | M16 × 1.5 LH, M16 × 1.5 RH, 5/8 Inch UNF |
| Connection Type | Thread Mounted |
| Pressure Range | 68 – 105 kg/cm² |
| Temperature Range | 0 – 100°C |
| Operating RPM | 10,000 – 15,000 RPM |
| Flow Option | Single Way |
| Bearing Type | Double Ball Bearing |
| Material Options | Stainless Steel (SS304), Aluminium, etc. |
| Application Media | Coolant, Hydraulic Fluid |
| Typical Applications | CNC Machines, VMC Machines, Drill Machines |
| Customization | Available as per application requirement |
| Spare Seal Kit | Available in all sizes |
